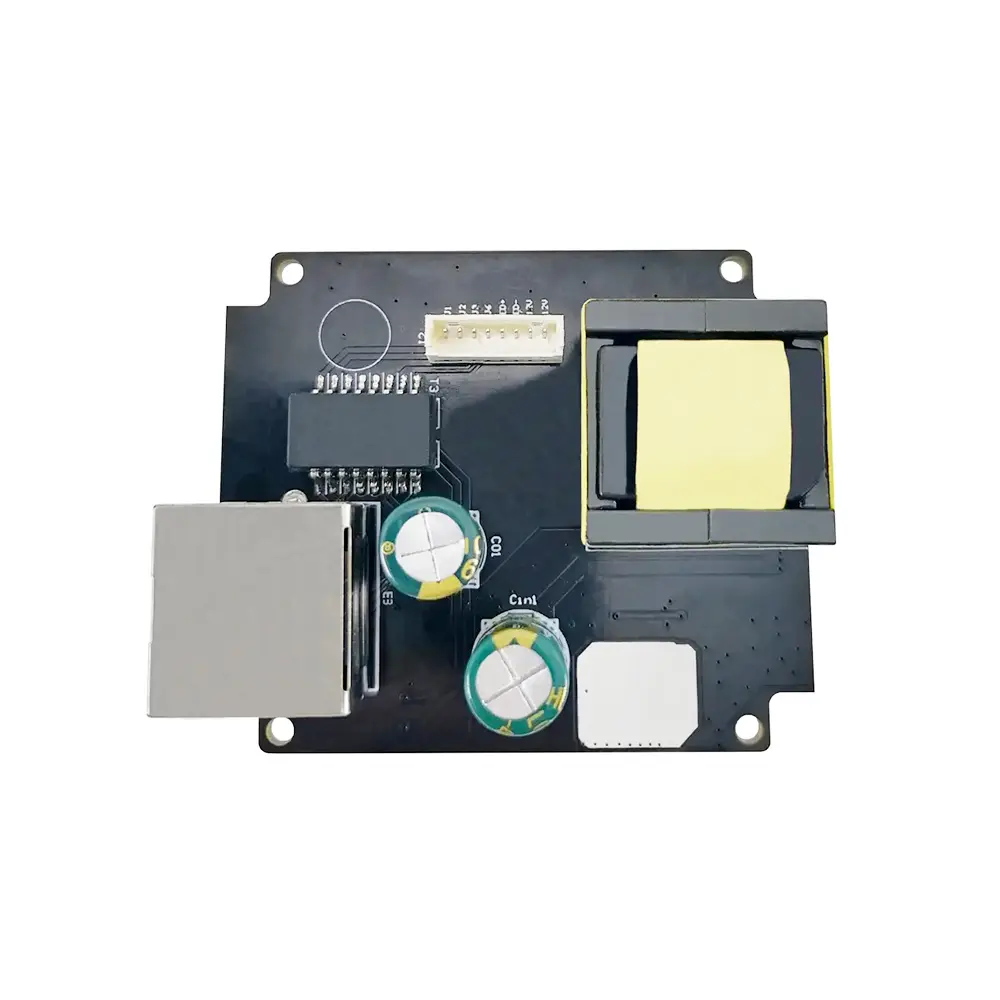

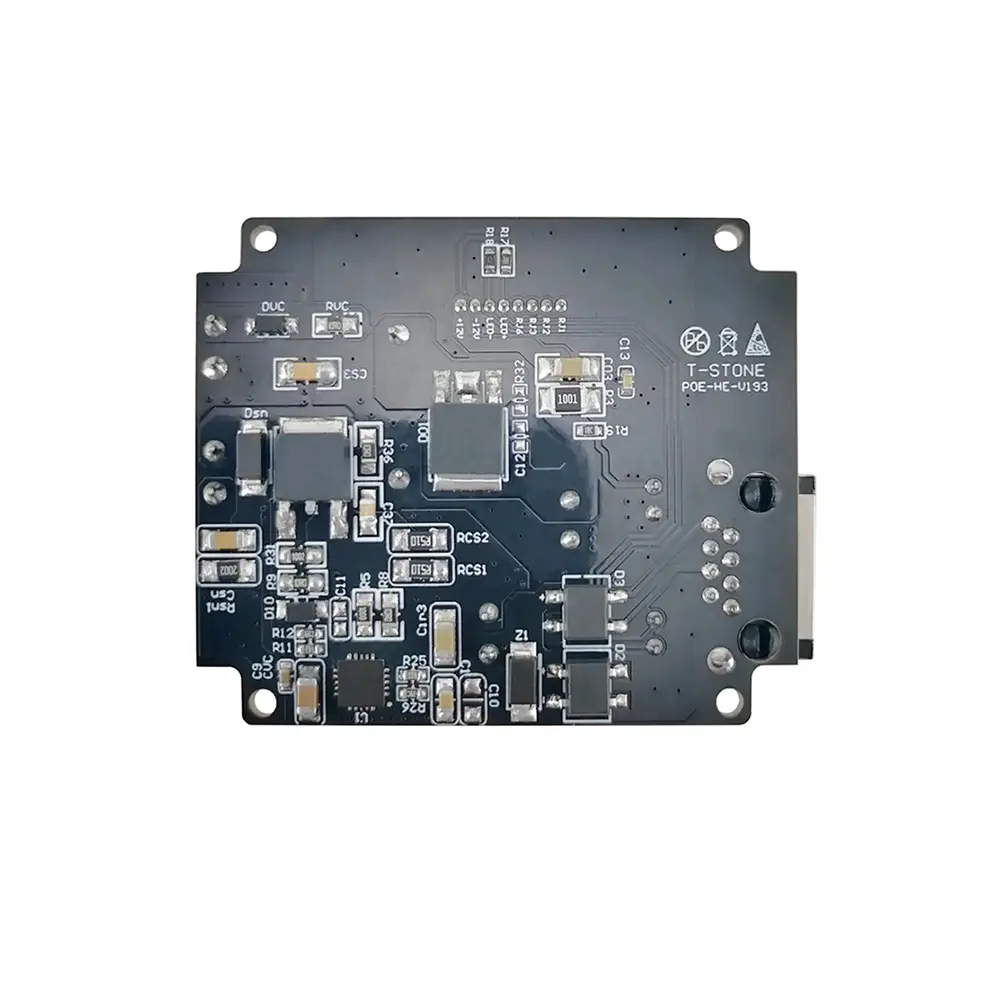

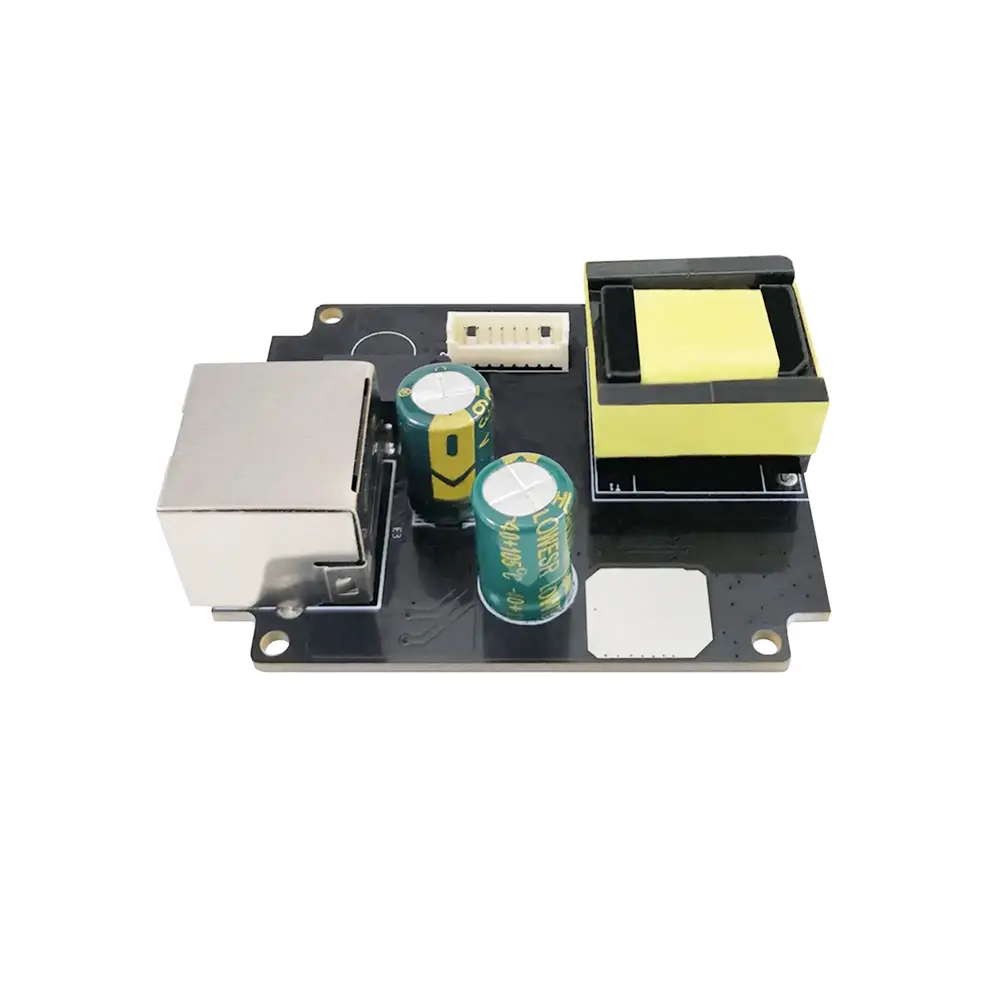

100Mbps Isolated 24V 1A 25W PoE Module

Model: TSD-V193

  • Input: Wide-Range PoE DC 38-56V
  • Output: DC 24V MAX 1A 25W
  • PoE protocol: IEEE 802.3af/at
  • Transmission rate: 10/100Mbps
  • RJ12+ RJ36- / RJ45+ RJ78-fully compatible
  • Interface: RJ45 port + PH1.25 Socket
  • Size: 53*45*14.7 mm (L*W*H)
  • Weight: N.W=27 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

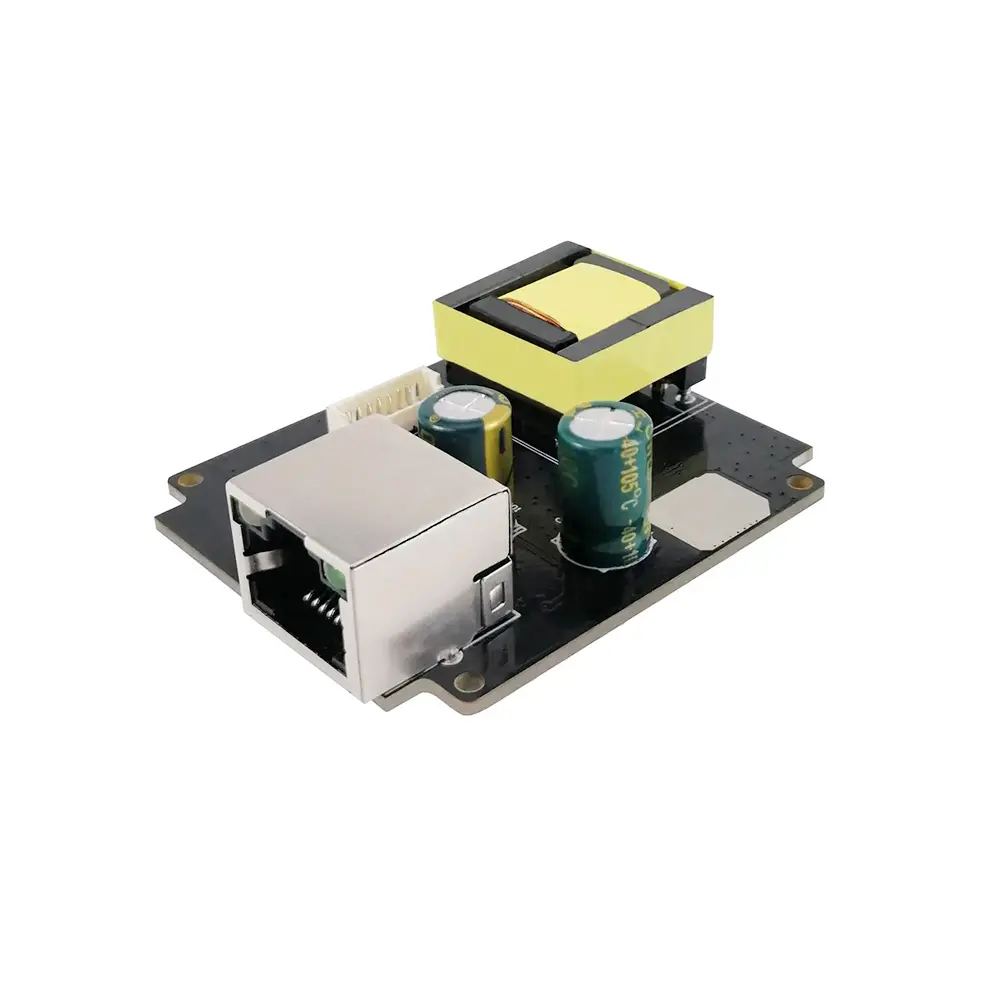

    v193-3
    01

    V193 is an active high-power PoE module with a conversion efficiency of over 85%. Its power supply mode is fully compatible with RJ12+ RJ36- / RJ45+ RJ78-.The V193 module is responsible for connecting to PSE. It processes POE signals, safely powers the devices, and transmits network signals.



    Input port: Horizontal RJ45 female socket * 1.Input voltage: DC wide voltage ranging from 38 to 56V.Output port: Vertical 8Pin PH1.25 female socket * 1. Output voltage: DC24V.Output current: max1A.


    ​

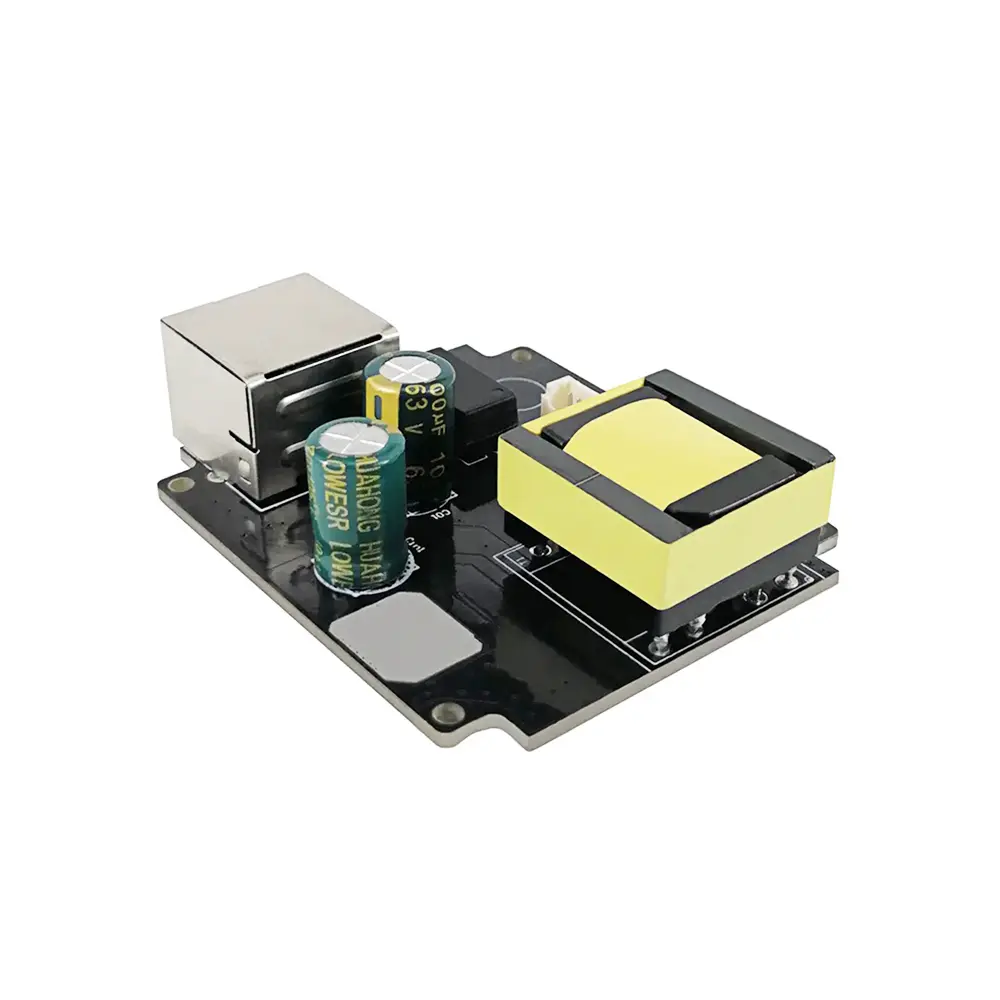

    v193-4
    01

    The V193 adopts a high-temperature-resistant and flame-retardant interface. The circuit design is equipped with protection functions such as lightning protection, short-circuit protection, overload protection, and high-temperature protection. Its EMC parameters comply with the IEC 61000-4-2/3/4/5/6 standards. It uses an isolated design scheme and is equipped with a high-power pure copper isolation transformer. The product has obtained certifications such as CE, FC, and RoHS, and is well-received by consumers.

    The V193 complies with the IEEE802.3af/at POE standard protocol. Its maximum output power is 25W(IEEE802.3at class4), and it can also output 15.4W (IEEE802.3af class 3). It supports wide-voltage input of DC38-56V, and the default output voltage is DC24V. Other voltages can be customized. The effective transmission distance is 100 meters, and it supports 24/7 non-stop operation.



    ● Input:​​ Wide-range PoE DC 38-56V
    ● Output:​​ DC 24V MAX 1 A
    ● Compliance:​​ IEEE 802.3af/at PoE International Standard
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
    ● Transmission Rate:​​ 10/100Mbps Auto-Negotiation
    ● Protection Features:​​ Overheat Protection, overload Protection, overvoltage Protection, short-Circuit Protection
    ● Surge Protection:​​ 4KV lightning surge resistance
    ● Conversion Efficiency: ≧85%
    ● Big brand high-precision electronic components with high parameter accuracy and low error rate

    ● 100Mbps high frequency POE filter to ensure stable data transmission

    ● High frequency low resistance electrolytic capacitor, effectively reduce the circuit high frequency loss and heating

    ● High power, high conduction and low impedance transistor, stable performance and low heat

    ●High temperature resistant PCB environmental protection material, lead-free environmental protection process

    ● Pure copper pin connector, good contact stability

    ● Beige high temperature flame retardant interface socket, safe and reliable quality

    ● Equipped with 80mm connecting line, convenient for users to connect


    Product parameter table

    Product Name

    100Mbps isolated 24V 1A 25W PoE module

    Product Model

    TSD-V193

    PoE Standard

    IEEE802.3af/at

    Input Voltage

    PoE: DC 38-56V

    Output

    DC 24V MAX 1 A

    Conversion Efficiency

    ≧85%

    PoE Pin

    RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Conversion Mode

    Isolated type

    Data Rate

    10/100Mbps Auto-Negotiation

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Short - circuit Protection Overcurrent Protection

    Overvoltage Protection Overheating Protection

    LED Indicator

    /

    Interface

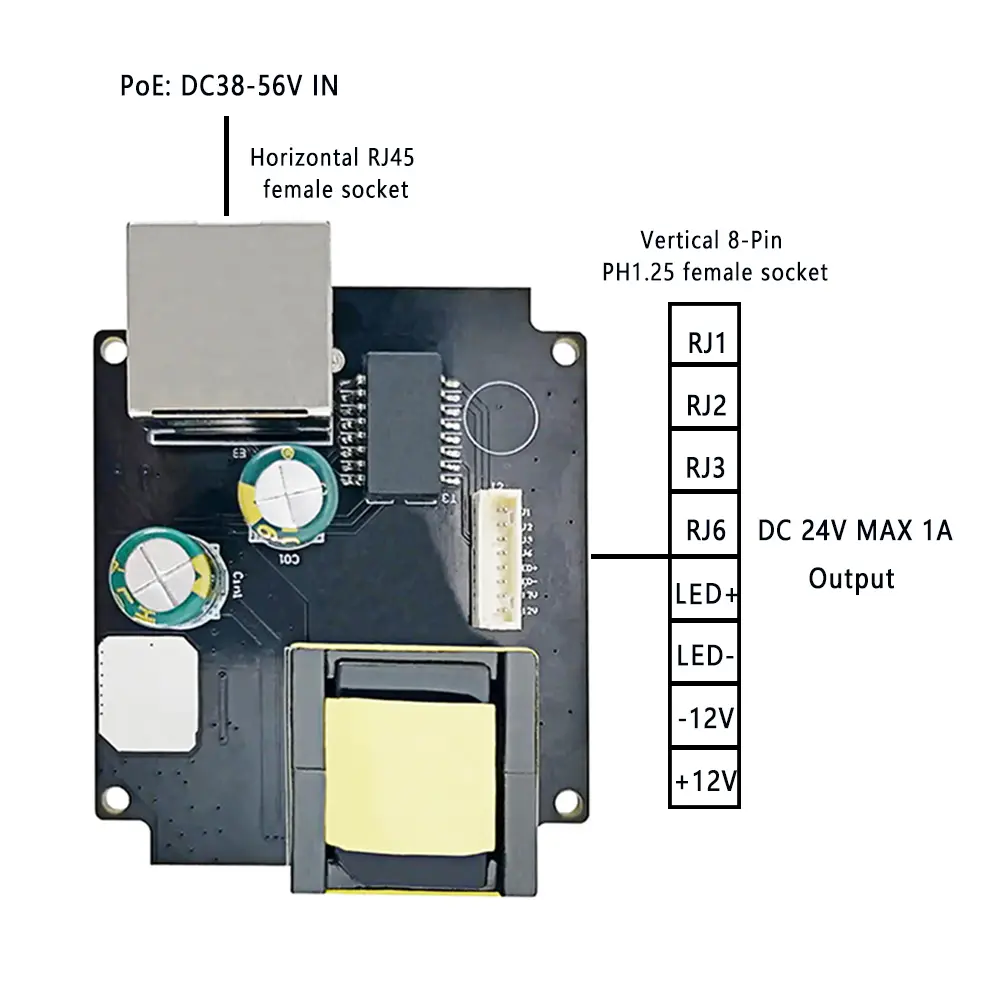

    PoE Input Port  (RJ45 Ethernet port): PoE IN

    Output Port (8-Pin PH1.25 female socket): Data + DC OUT

    Function

    /

    Material

    FR-4

    Color

    glossy black solder mask

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 27 g

    Dimension

    53*45*14.7 mm

    Package

    Anti-static pearl cotton

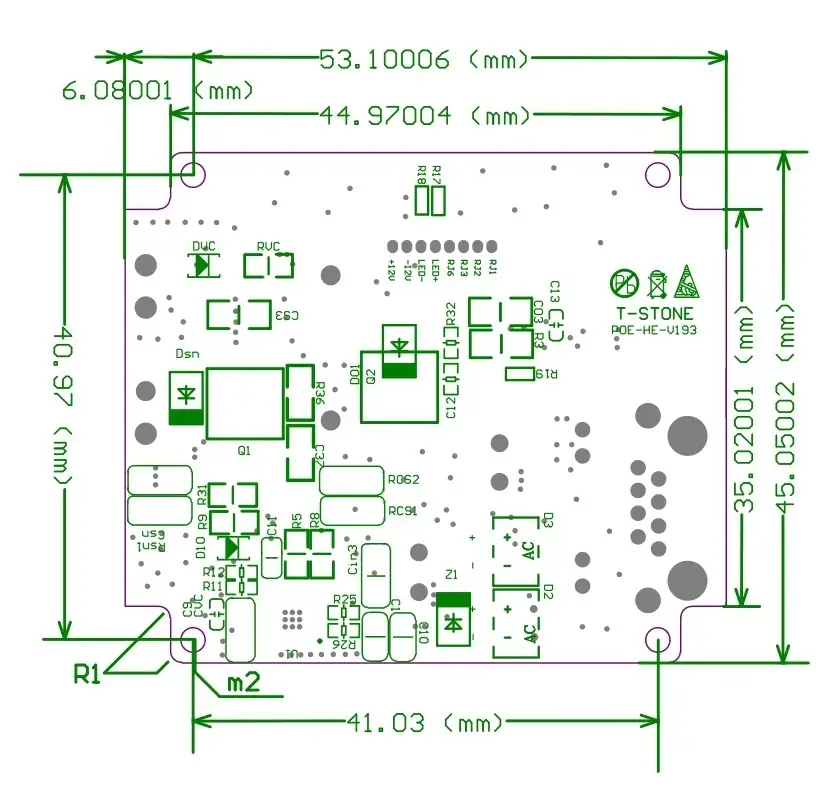

    Structure size: 53*45*14.7mm. Screw holes: Ø=2.0mm*4. PCB: four-layer board, H=1.6mm.Surface painting: bright black. Overall layout: square structure, the maximum thickness is 14.7mm. The module is double-side-designed. For a high space utilization rate, the high and low components are arranged on two sides.
    Dimension

    V193 is mainly applied in industry products such as broadcasting audio systems, commercial display billboards, wireless APs, etc. The application of the V193 has greatly enhanced the safety of power supply. The electric current near the equipment is all low-voltage electricity, eliminating the potential hazards of electric shock and fire. It has significantly reduced the difficulty of centralized power supply. Only the switch needs to be centrally powered, and the power supply range is concentrated, making it easy to manage and with low costs. The V193 has performed well in the fields of broadcasting

    Application1
    Application2
    Application3

    Package list
    Items Quantity
    TSD-V193 PoE Module 280
    Operation Manual /
    v193-package
