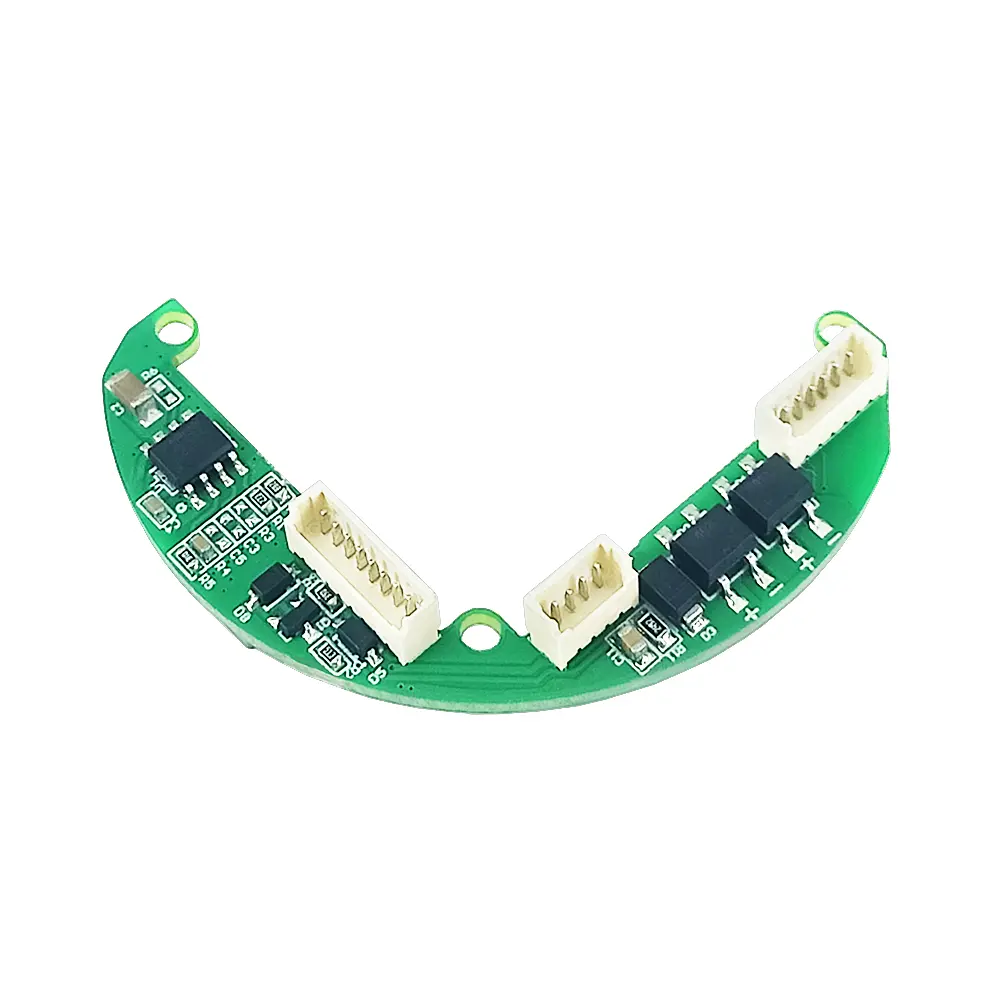

15W active PoE module for security monitoring

Model: TSD-PD3832

  • Input: Wide-Range PoE DC 38-56V
  • Output: DC 12V MAX1.5A
  • PoE protocol: IEEE 802.3af
  • Transmission rate: 10/100Mbps
  • RJ12+ RJ36- / RJ45+ RJ78-fully compatible
  • Interface: PH1.25 terminal block
  • Size: 47.5*47.5*9mm (L*W*H)
  • Weight: N.W=4.5 g

Trade Info

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Inventory: In stock

Payment: T/T, L/C, PayPal

Samples: Stock Sample is Free & Available

    Contact us Download
    Description
    Features
    Specifications
    Dimensions
    Interface
    Application
    Package

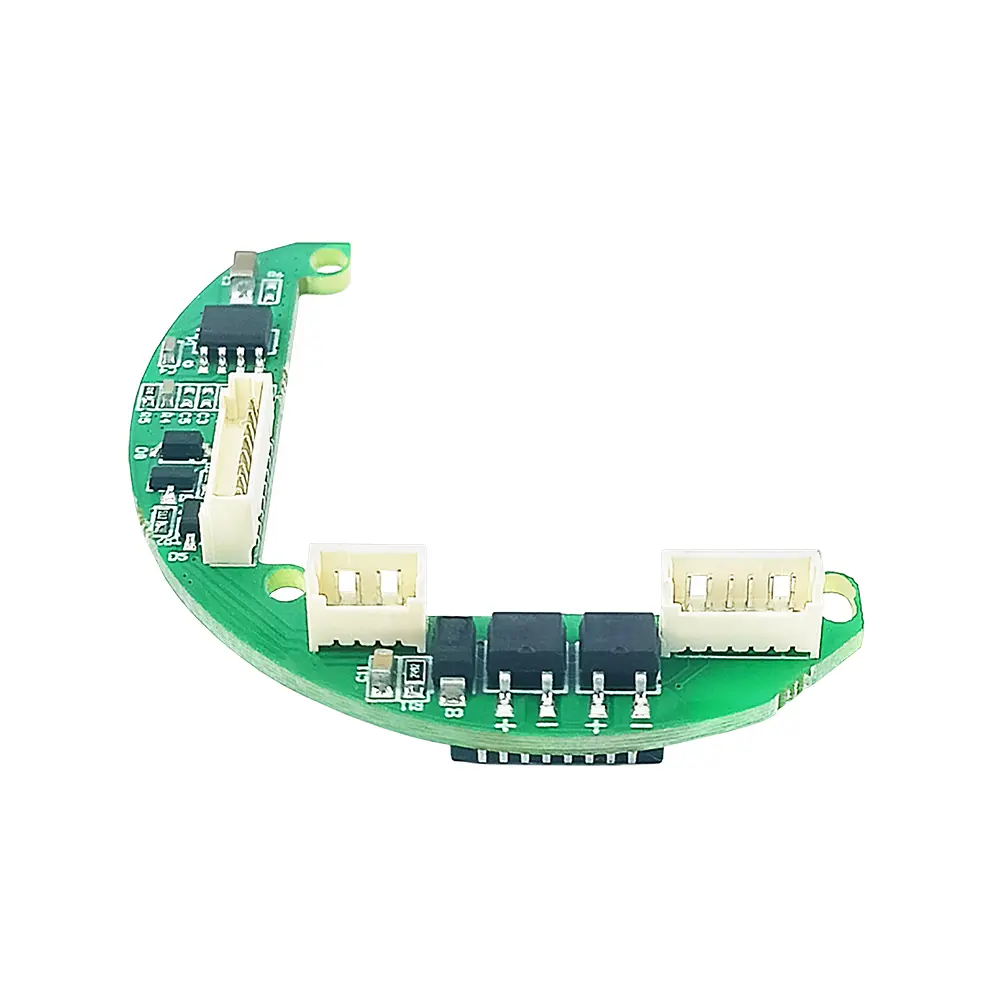

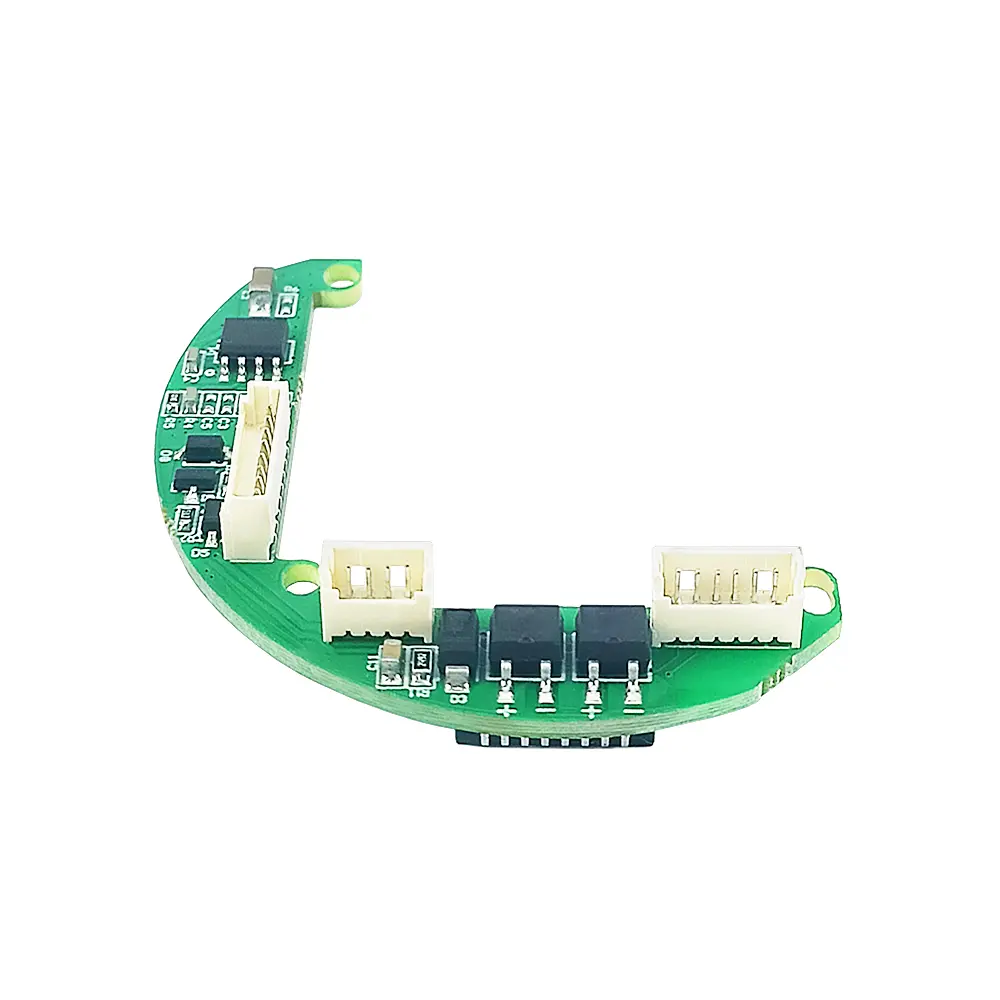

    TSD-PD3832-4
    01

    TSD-PD3832 module is an active PoE module designed for small IPC equipment such as small hemisphere and small conch in the field of security monitoring. The maximum output power of the module is 15W, which can stably and reliably output 12V1.5A DC.

    TSD-PD3832 module supports IEEE802.3af standard, integrated in the receiving end can be detected and identified by PoE equipment, to ensure the data signal transmission and DC power supply of terminal equipment.

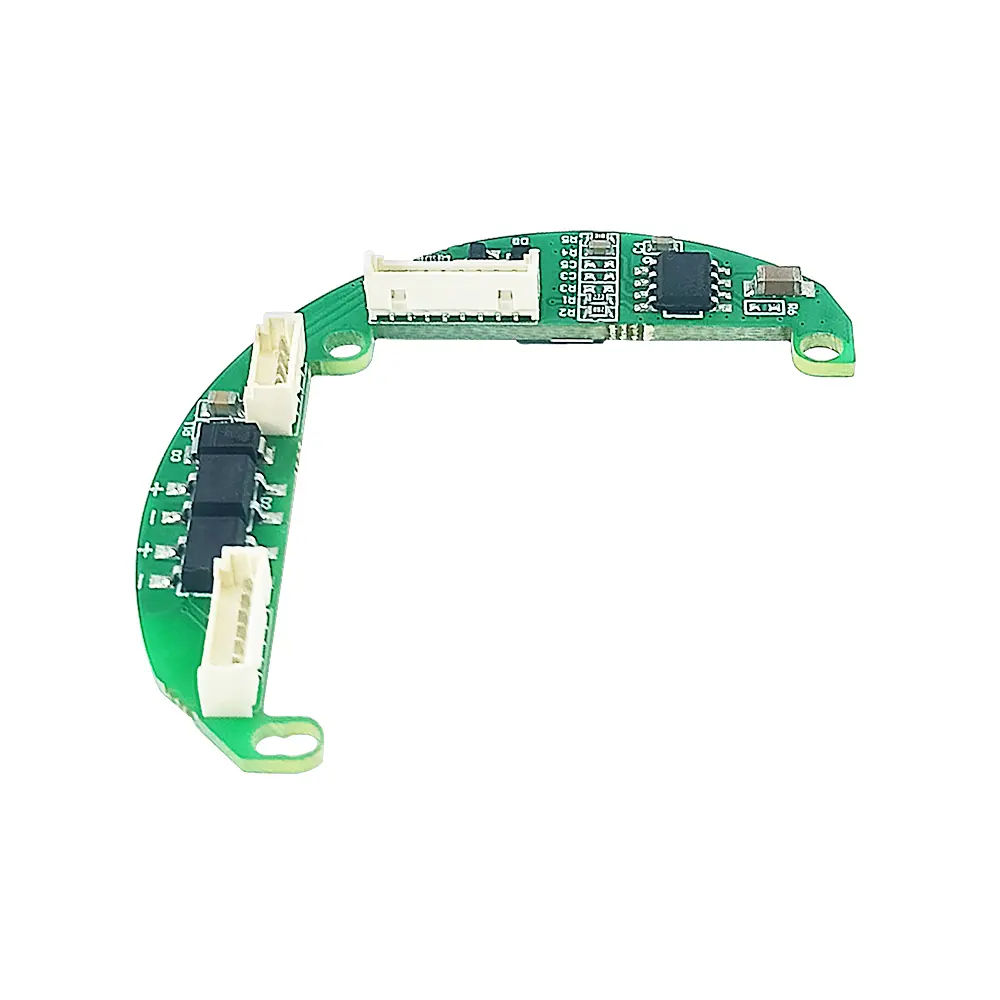

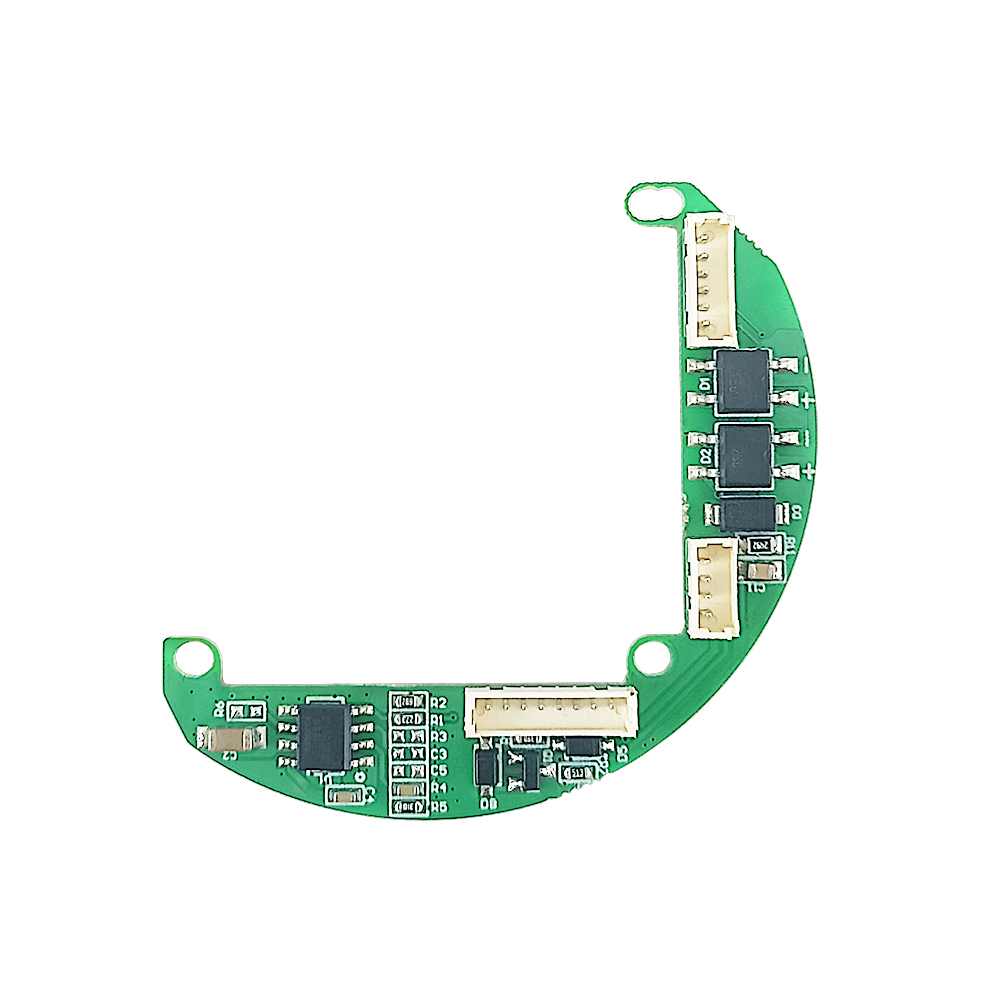

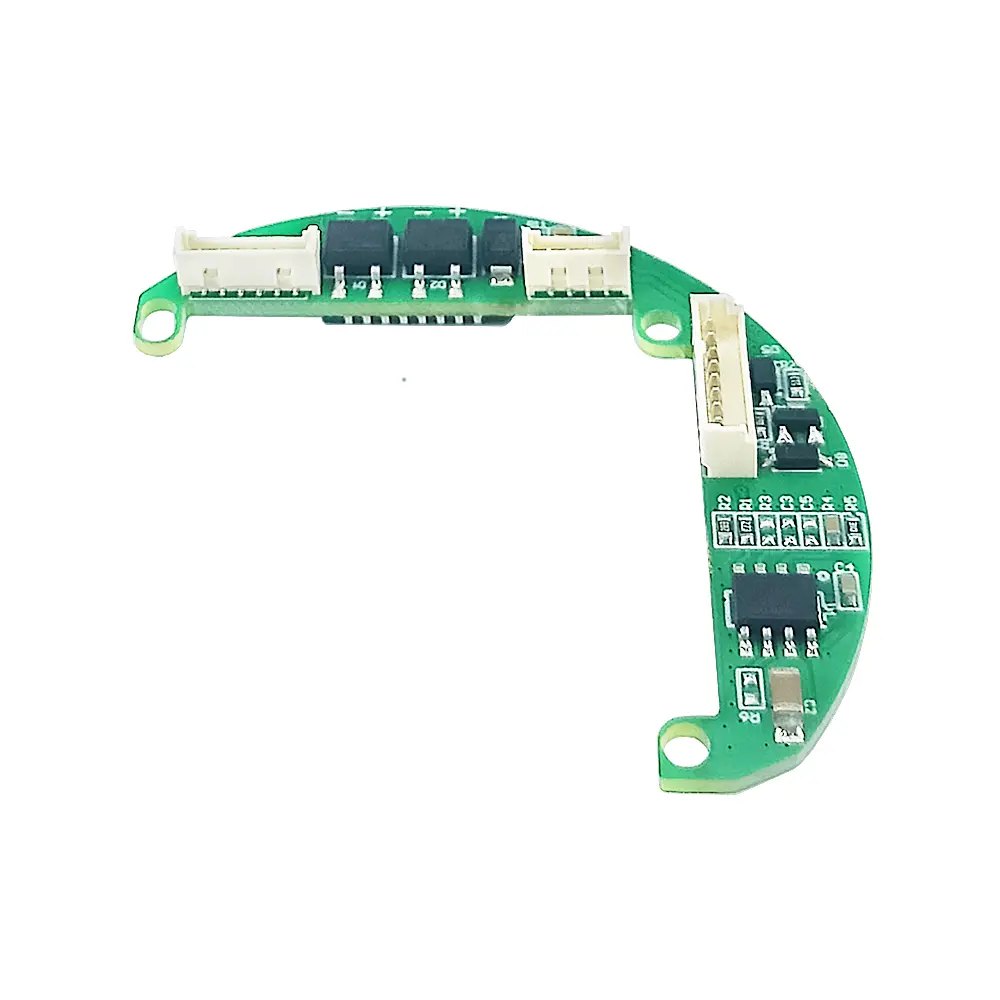

    TSD-PD3832-5

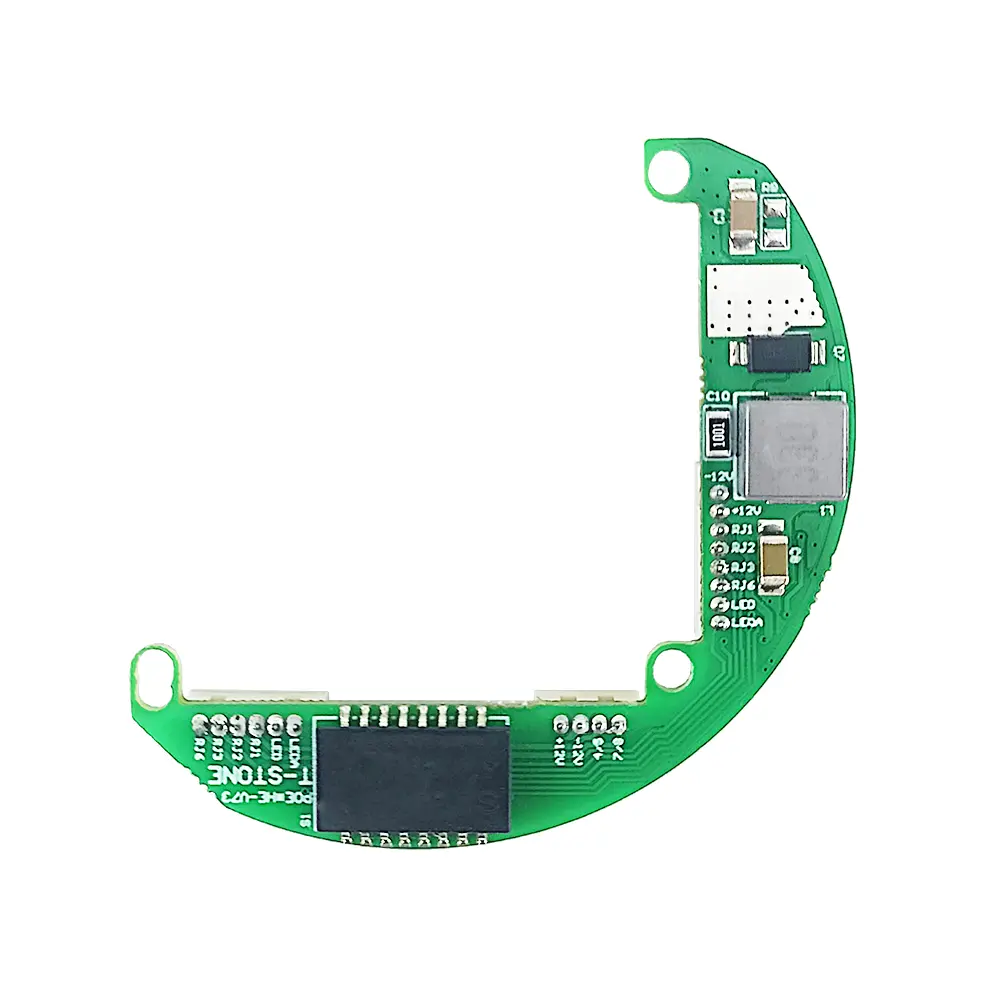

    The TSD-PD3832 module features the following interfaces: 4-pin 1.25mm female connector: Input port, supports RJ45+ and RJ78- for PoE power supply, and outputs 12V DC power. 6-pin 1.25mm female connector: Input port, supports RJ12+ and RJ36- for power supply. 8-pin 1.25mm female connector: Output port, outputs data signals and 12V 1.5A DC power.

    TSD-PD3832 module supports IEEE802.3af PoE standard protocol, has obtained CE, FCC, RoHS certification, EMC parameters in line with IEC 61000-4-2/3/4/5/6 standard requirements, products are sold to more than one hundred countries around the world.

    The TSD-PD3832 module has the functions of overheat protection, overvoltage protection, overcurrent protection, short circuit protection and so on. The maximum output power is 15W. Transmission rate: 10/100M adaptive. Support wide voltage input DC 38-56V, default output voltage DC 12V, other voltage can be customized.



    ● Input:​​ Wide-range PoE DC 38-56V
    ● Output:​​ DC 12V MAX 1.5A
    ● Compliance:​​ IEEE 802.3af PoE International Standard
    ● Certifications:​​ CE, FCC, RoHS
    ● EMC Standards:​​ Meets IEC 61000-4-2/3/4/5/6 Requirements
    ● Port Compatibility: RJ12+ RJ36- / RJ45+ RJ78- Fully Compatible
    ● Transmission Rate：10/100Mbps
    ● Protection Features: Overheat protection, overload protection, overvoltage protection,  short-circuit protection
    ● Surge Protection: 4KV lighting surge resistance
    ● Conversion efficiency≧90%
    ● Design Features:​​ Vertical interface, space saving, easy installation
     ● High temperature resistant environment PCB material, environmental protection lead-free process

    ● 100 megabit network filter, ultra-thin high power, can carry high power equipment

    ● High frequency low resistance electrolytic capacitor, reduce circuit high frequency wastage

    ● International famous original high precision electronic component

    ● High power transistor, high conduction and low impedance

    ● Pure copper pin connector to ensure stable connection

    ● High temperature resistant flame retardant socket, reduce safety risks

    ● Equipped with 80mm connecting line for easy connection


    Product parameter table

    Product Name

    15W Active PoE Module for Security Monitoring

    Product Model

    TSD-PD3832

    PoE Standard

    IEEE802.3af

    Input Voltage

    PoE: DC 38-56V

    Output

    DC 12V MAX 1.5A

    Conversion Efficiency

    ≧90%

    PoE Pin

    RJ12+ RJ36- / RJ45+ RJ78- Fully compatible

    Conversion Mode

    Non-isolated type

    Data Rate

    10/100Mbps

    Transmission Distance

    100 meters(Category 5e Cable (Cat5e) )

    Surge Protection

    4KV

    Circuit Protection

    Overvoltage Protection Overheating Protection
    Overcurrent Protection Short - circuit Protection

    LED Indicator

    /

    Interface

    PoE Input Port1 (4-Pin PH1.25mm Socket): RJ45+ RJ78-

    PoE Input Port2 (6-Pin PH1.25mm Socket): RJ12+ RJ36-

    Output Port (8-Pin PH1.25mm terminal block): Data+DC OUT

    Function

    /

    Material

    FR-4

    Color

    glossy green solder mask

    Accessories

    /

    EMC

    IEC 61000-4-2/3/4/5/6

    Temperature

    -30～60℃ For Operating

    -30～80℃ For Storage

    Humidity

    RH95% MAX (Non-condensation)

    Weight

    N.W: 4.5 g

    Dimension

    47.5*47.5*9 mm

    Package

    Anti-static pearl cotton

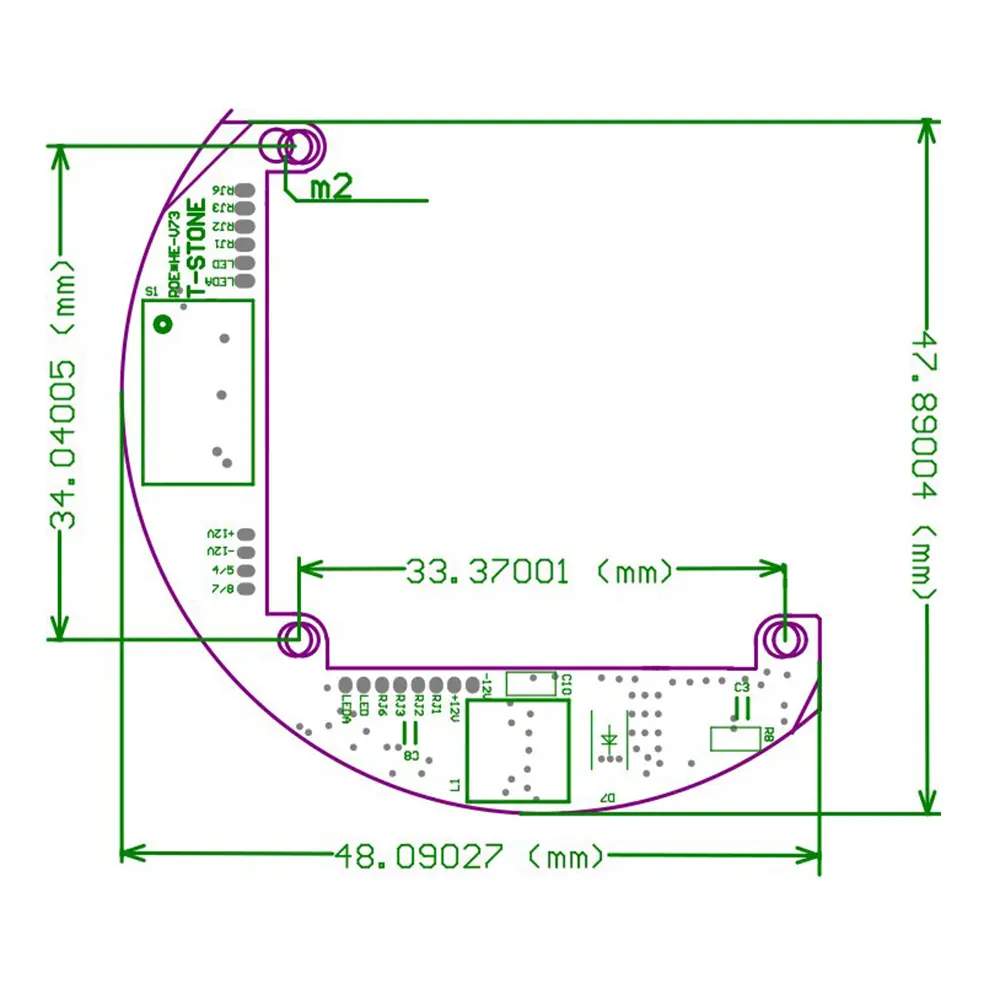

    Size and structure: 47.5*47.5*9mm; screw hole diameter: Φ=2.0mm*4; center distance of holes: 34*34mm. PCB thickness: 1.6mm. Overall layout: Anisotropic structure, ultra-thin design. Maximum thickness: 9mm. solder mask: Glossy green oil. Module design: Two-layer board, double-sided design. The entire board is compact and lightweight, easy to install and saves space.


    TSD-PD3832-Dimension

    TSD-PD3832 is an active PoE module with a maximum output power of 15W. The module is mainly used in small IPC equipment such as small hemisphere and small conch in the field of security monitoring. The module is ultra-thin and compact, easy to install, and can be applied in small terminal equipment in many fields. The convenient and flexible features of TSD-PD3832 module are well received by users.

    The TSD-PD3832 module does not have isolation function, so users should pay attention to the use process: two or more PD devices equipped with the module should not common ground during work, otherwise it will lead to poor work of the equipment.

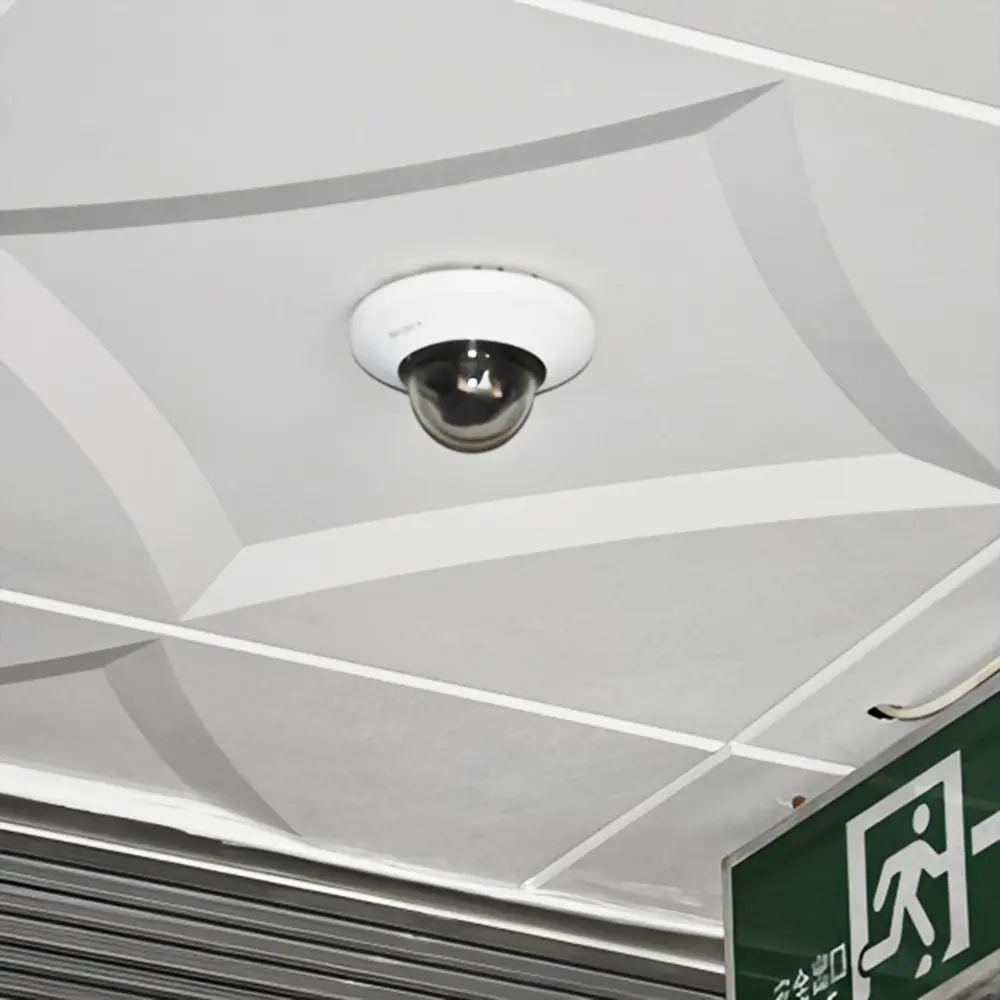

    Application1
    Application2
    Application3

    Package list
    Items Quantity
    PoE PD Module 500 PCS
    Operation Manual /
